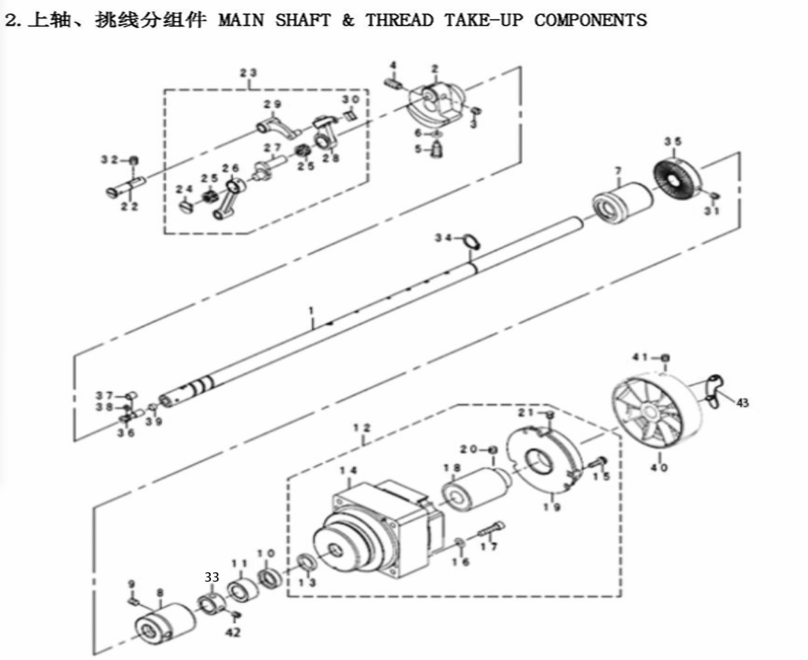

01 |
PFQ5F0201 |
上轴 MAIN SHAFT |
1 |
|
|
02 |
PFQ60202 |
针杆曲柄 COUNTER WEIGHT |
1 |
|
|
03 |
PF5550625 |
挑线曲柄定位螺钉 SCREW |
4 |
|
|
04 |
PF5550218 |
针杆曲柄紧固螺钉 SCREW |
1 |
|
|
05 |
PF5550216 |
针杆曲柄定位螺钉 SCREW |
1 |
|
|
06 |
PF5550217 |
针杆曲柄定位螺钉O型圈 O RING |
1 |
|
|
07 |
PFQ50207 |
上轴前轴套 FRONT BUSHING OF MAIN SHAFT |
1 |
|
|
08 |
PF555028 |
上轴中轴套 MID BUSHING OF MAIN SHAFT |
1 |
|
|
09 |
PF555029 |
上轴中轴套螺钉 SCREW |
1 |
|
|
10 |
PFQ90A-90000210NAK |
上轴油封 OIL SEAL |
1 |
|
|
11 |
PFQ20205 |
上轴后套 REAR BUSHING OF MAIN SHAFT |
1 |
|
|
12 |
PFQ7T016003 |
电机组件 MOTOR |
1 |
|
|
13 |
PFQ5F0242 |
垫圈 THE GASKET |
1 |
|
|
14 |
PFQ7T01600301 |
电机定子 MOTOR STATOR |
1 |
|
|
15 |
PFQ7T01600306 |
紧固螺钉 SCREW |
6 |
|
|
16 |
PFQ5022002 |
弹簧垫片 WASHER |
4 |
|
|
17 |
SCJ2010 |
内六角圆柱头螺钉 SCREW |
4 |
|
|
18 |
ENCODER ASM. |
电机转子 MOTOR ROTOR |
1 |
|
|
19 |
PFQ7T01600304 |
编码器 ENCODER ASM. |
1 |
|
|
20 |
PFQ7T01600303 |
转子固定螺钉 SCREW |
2 |
|
|
21 |
PFQ7T01600307 |
孔塞 RUBBER PLUG |
1 |
|
|
22 |
PF5550225 |
挑线杆铰链轴 THREED TAKE-UP CRANK SHAFT |
1 |
|
|
23 |
PF55500223A |
挑线杆部件 THREED TAKE-UP ASM. |
1 |
|
|
24 |
PF5550228 |
挑线曲柄左螺钉 SCREW |
1 |
|
|
25 |
PF555022404 |
滚针轴承 BEARING |
2 |
|
|
26 |
PF555031 |
针杆连杆 NEEDLE BAR CONNECTING ROD |
1 |
|
|
27 |
PF55502201 |
挑线杆曲柄 THREED TAKE-UP SHAFT |
1 |
|
|
28 |
PF55502212 |
挑线杆 THREED TAKE-UP |
1 |
|
|
29 |
PF55502211 |
挑线杆连杆 THREED TAKE-UP CONNECTING ROD |
1 |
|
|
30 |
PFQ90A-55500223A01 |
挑线杆油封 GASKET SEALE |
1 |
|
|
31 |
PF68425H33 |
绕线主动轮紧定螺钉 SCREW |
2 |
|
|
32 |
PF555022 |
挑线杆铰链轴紧固螺钉 SCREW |
1 |
|
|
33 |
PF555026 |
上轴挡圈 RETAINING RING |
1 |
|
|
34 |
SCJ1036 |
开口挡圈 RETAINING RING |
1 |
|
|
35 |
PF03030223 |
绕线主动轮 WHEEL |
1 |
|
|
36 |
PF5550212 |
曲柄油量调节销 THE ADJUST PIN |
1 |
|
|
37 |
PF5550213 |
密封圈 SIDE PLATE GASKET |
1 |
|
|
38 |
PF5550214 |
曲柄油量调节销O型圈 THRUST COLLAR ASM |
1 |
|
|
39 |
PFQ90A0211 |
曲柄油量限制毡 OIL FELT |
1 |
|
|
40 |
PFS5T0220 |
手轮 HEAD WHEEL |
1 |
|
|
41 |
PF1310B24 |
上轮螺钉 SCREW |
2 |
|
|
42 |
PF90008129 |
螺钉 SCREW |
2 |
|
|
43 |
PFS5T0228 |
手轮标牌 HANDWHEEL SIGN |
1 |
