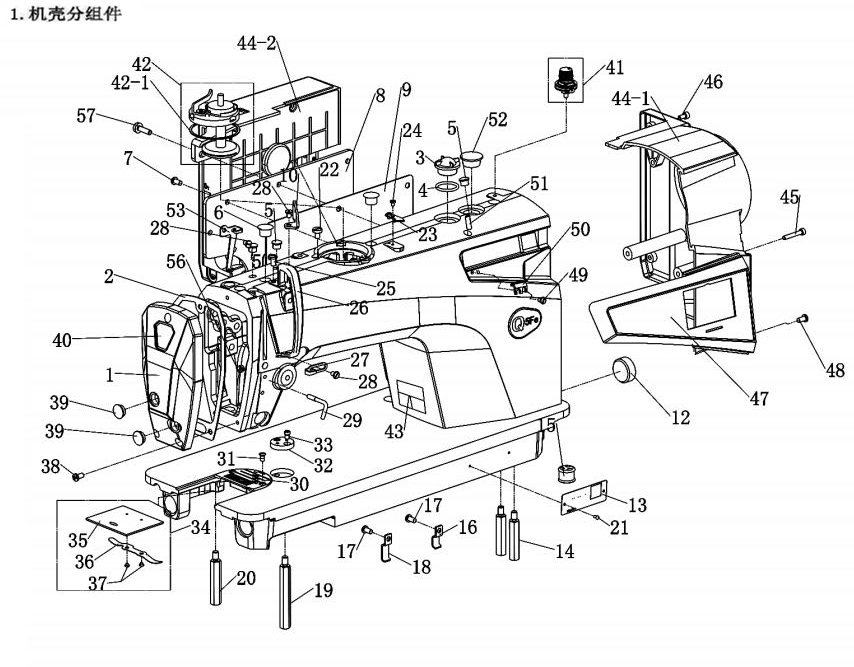

操作 (operation) |
数量 (quantity) |
零件编号 (number) |
零件品号 (Product number) |
零件名称 (Product name) |
Q5Fe 用量 (Number of Q5Fe used) |
---|---|---|---|---|---|
01 | PFQ511 | 面板 FACE PLATE | 1 | ||
02 | PFQ512 | 面板垫FACE PLATE GASKET | 1 | ||
03 | PF5550824 | 油窗 OIL WINDOW | 1 | ||
04 | PF5550825 | 油窗O型圈THRUST COLLAR ASM | 1 | ||
05 | PF5550113 | 挑线连杆销螺孔塞 RUBBER PLUG | 3 | ||
06 | PF5550112 | 针杆曲柄螺孔塞RUBBER PLUG | 1 | ||
07 | PF555016 | 后窗板螺钉SCREW | 7 | ||
08-1 | PFQ51414A | 后窗板(四自动)SIDE PLATE | 1 | ||
08-2 | PFQ518 | 后窗板(三自动)SIDE PLATE | 1 | ||
09-1 | PFQ51424A | 后窗板垫(四自动)SIDE PLATE GASKET | 1 | ||
09-2 | PFQ519 | 后窗板垫(三自动)SIDE PLATE GASKET | 1 | ||
10 | PFQ5110 | 三眼线钩 THREE EYELINER HOOK | 1 | ||
12 | PF5550115 | 下轴盲孔塞RUBBER PLUG | 1 | ||
13 | BZ3097 | 型号牌MODEL PLATE | 1 | ||
14 | PF555013 | 底板支柱 BED SCREW STUD | 2 | ||
15 | PF888056D131 | 电线过线套NEEDLE BEARING | 1 | ||
16 | PF99901511 | 电线压板(短)CORD HOLDER(S) | 2 | ||
17 | PF5550161 | 电线压板固定螺钉 SCREW | 3 | ||
18 | PF99901160 | 电线压板(长)CORD HOLDER(L) | 1 | ||
19 | PF90000120 | 底板支柱(长)BED SCREW STUD(L) | 1 | ||
20 | PF90000121 | 底板支柱(中)BED SCREW STUD(M) | 1 | ||
21 | SCJ6071 | 型号牌铆钉POLE | 2 | ||
22 | PF90000131 | 绕线器紧固定螺钉 SCREW | 3 | ||
23 | PF90000132 | 绕线切刀 THREAD CUTTER | 1 | ||
24 | PF68425K19 | 绕线切刀固定螺钉SCREW | 2 | ||
25 | PF5550230 | 挑线杆护罩螺钉SCREW | 1 | ||
26 | PFQ5126 | 挑线杆护罩THREAD TAKE-UP LEVER COVER | 1 | ||
27 | PF5550316 | 右线钩RIGHT ARM THREAD GUIDE | 1 | ||
28 | PF5550317 | 右线钩螺钉SCREW | 3 | ||
29 | PF9520MXDK021 | 大线钩LARGE ARM THREAD GUIDE | 1 | ||
30-1 | PF555063601B | 针板 NEEDLE PLATE | 1 | ||
31 | PF5550637 | 针板螺钉 SCREW | 2 | ||
32 | PFQ50132 | 卷边器座 RULER PLATE | 1 | ||
33 | PF5550117 | 卷边器座螺钉 SCREW | 2 | ||
34 | PF5550638 | 推板组件 SLIDE PLATE ASM | 1 | ||
35 | PF555063801 | 推板 SLIDE PLATE | 1 | ||
36 | PF555063802 | 推板簧SPRING OF SLIDE PLATE | 1 | ||
37 | PF555063803 | 推板螺钉 SCREW | 2 | ||
38 | PF5550161 | 面板螺钉 SCREW | 3 | ||
39 | PF5550111 | 面板调节螺孔塞RUBBER PLUG | 2 | ||
40 | PFQ50140 | 面板装饰牌PLATE | 1 | ||
41 | PFQ5141 | 绕线夹线器组件BOBBIN THREAD TENSION ASM | 1 | ||
42 | PF90000157 | 绕线器BOBBIN WINDER ASM | 1 | ||
42-1 | PF900001511 | 绕线器油封OIL SEAL OF COILING WHEE | 1 | ||
43 | PFQ1139 | 安全指示牌SAFETY-INDICATING PLATE | 1 | ||
44-1 | PFQ5FDKZJSF08 | 电控壳PILLEY SIDE COVER ASM | 1 | ||
44-2 | PFQ5FDKZJSF01 | 电控 PILLEY ACCESSORY | 1 | ||
45 | PFS5T0149 | 电机罩组件固定螺钉(长)SCREW(LONG) | 3 | ||
46 | BF310164527 | 螺钉 SCREW | 2 | ||
47 | PFQ5F0147 | 操作面板组件 OPERATION PANEL | 1 | ||
48 | PFQ50148 | 操作面板组件固定螺钉 SCREW | 1 | ||
49 | PFQ5149 | 支架固定螺钉 SCREW | 2 | ||
50 | PFQ5150 | 支架 STAND | 1 | ||
51 | SCJ2032 | 操作面板顶紧螺钉SCREW M5 L=25 | 1 | ||
52 | PF98000187 | 调节孔孔塞RUBBER PLUG | 1 | ||
53 | PFQ5129 | 左线钩LEFT ARM THREAD GUIDE | 1 | ||
56 | PF9520MXDK02101 | 缓线勾紧固螺母NUT | 1 | ||
57 | PFQ571 | 针距标盘螺钉SCREW | 1 | ||
58 | PFQ5FDKZJ01 | 电控组件(按键屏)PILLEY COVER ASM(-I) | 1 | ||
59 | PFQ5FDKZJ | 电控组件(触摸屏)PILLEY COVER ASM(-II) | 1 | ||
5 | PF5550113 | 挑线连杆销螺孔塞 RUBBER PLUG | 3 | ||
30-2 | PF0302141A | 针板 M2.6NEEDLE PLATE | 1 |
