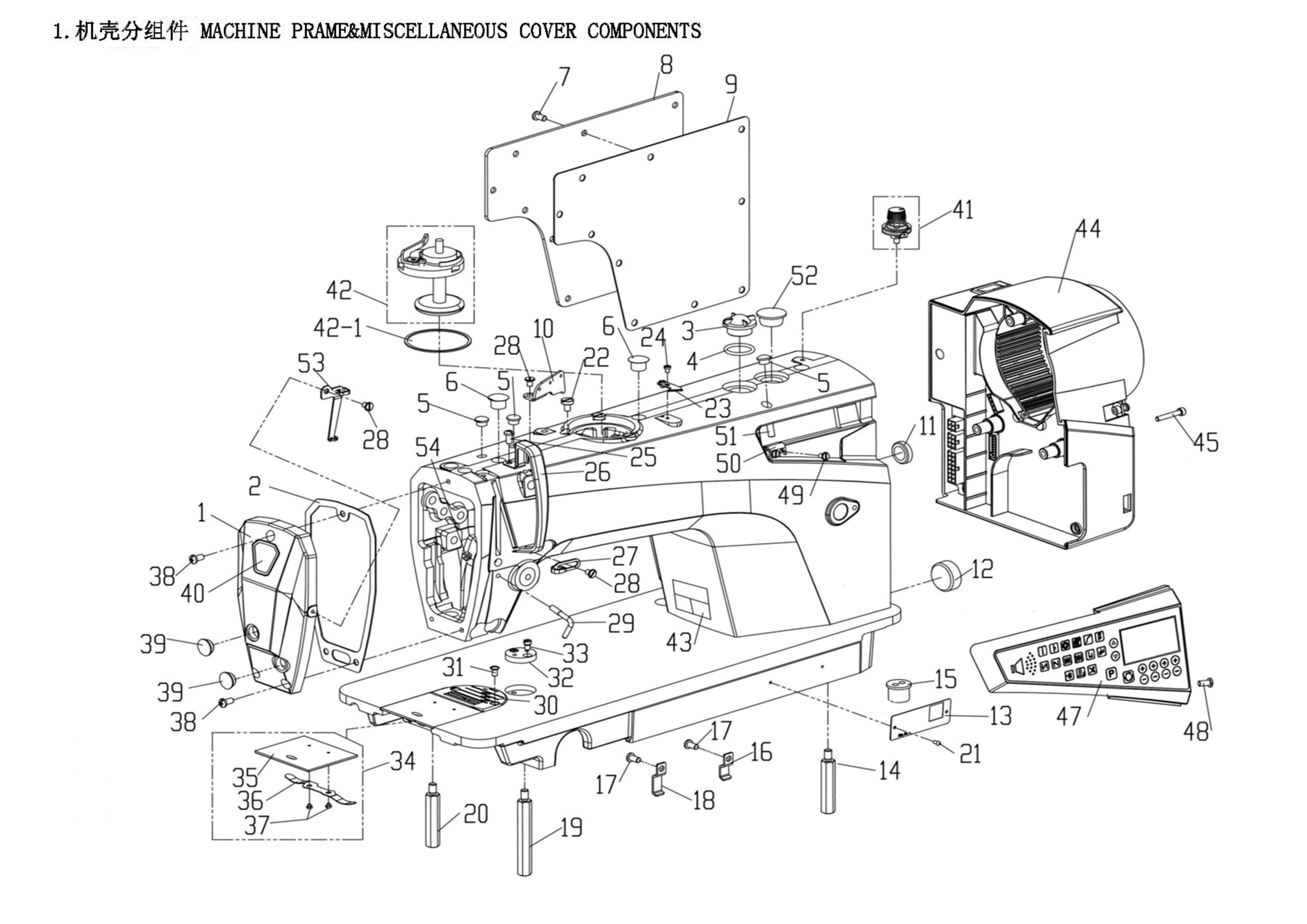

01 |
PFQ511 |
面板 FACE PLATE |
1 |
|
|
02 |
PFQ512 |
面板垫 FACE PLATE GASKET |
1 |
|
|
03 |
PF5550824 |
油窗 OIL WINDOW |
1 |
|
|
04 |
PF5550825 |
油窗O型圈 THRUST COLLAR ASM |
1 |
|
|
05 |
PF5550113 |
挑线连杆销螺孔塞 RUBBER PLUG |
3 |
|
|
06 |
PF5550112 |
针杆曲柄螺孔塞 RUBBER PLUG |
2 |
|
|
07 |
PF555016 |
后窗板螺钉 SCREW 3/16-28 L=9 |
8 |
|
|
08 |
PFQ518 |
后窗板 SIDE PLATE |
1 |
|
|
09 |
PFQ519 |
后窗板垫 SIDE PLATE GASKET |
1 |
|
|
10 |
PFQ5110 |
三眼线勾 THREE EYELINER HOOK |
1 |
|
|
11 |
PF5550114 |
送料调节器孔塞 RUBBER PLUG |
1 |
|
|
12 |
PF5550115 |
下轴盲孔塞 RUBBER PLUG |
1 |
|
|
13 |
PFQ50113 |
型号牌 MODEL PLATE |
1 |
|
|
14 |
PF555013 |
底板支柱 BED SCREW STUD |
2 |
|
|
15 |
PF888056D131 |
电线过线套 NEEDLE BEARING |
2 |
|
|
16 |
PF99901511 |
电线压板（短） CORD HOLDER(S) |
2 |
|
|
17 |
PF5550161 |
电线压板固定螺钉 SCREW 3/16-28 L=12 |
2 |
|
|
18 |
PF99901160 |
电线压板（长） CORD HOLDER(L) |
1 |
|
|
19 |
PF90000120 |
底板支柱（长） BED SCREW STUD(L) |
1 |
|
|
20 |
PF90000121 |
底板支柱（中） BED SCREW STUD(M) |
1 |
|
|
21 |
SCJ6071 |
型号牌铆钉 POLE |
2 |
|
|
22 |
PF90000131 |
绕线器紧固定螺钉 SCREW 3/16-32 L=7 |
3 |
|
|
23 |
PF90000132 |
绕线切刀 THREAD CUTTER |
1 |
|
|
24 |
PF68425K19 |
绕线切刀固定螺钉 SCREW 1/8-40 L=4 |
2 |
|
|
25 |
PF5550230 |
挑线杆护罩螺钉 SCREW 3/16-28 L=6 |
1 |
|
|
26 |
PFQ5126 |
挑线杆护罩 THREAD TAKE-UP LEVER COVER |
1 |
|
|
27 |
PF5550316 |
右线钩 RIGHT ARM THREAD GUIDE |
1 |
|
|
28 |
PF5550317 |
右线钩螺钉 SCREW 11/64-40 L=6 |
3 |
|
|
29 |
PF9520MXDK021 |
大线钩 LARGE ARM THREAD GUIDE |
1 |
|
|
30 |
PF555063601B |
针板 NEEDLE PLATE |
1 |
|
|
31 |
PF5550637 |
针板螺钉 SCREW 11/64-40 L=8.5 |
2 |
|
|
32 |
PF03030118 |
卷边器座 RULER PLATE |
1 |
|
|
33 |
PF5550117 |
卷边器座螺钉 SCREW 11/64-40 L=5 |
2 |
|
|
34 |
PF5550638 |
推板组件 SLIDE PLATE ASM |
1 |
|
|
35 |
PF555063801 |
推板 SLIDE PLATE |
1 |
|
|
36 |
PF555063802 |
推板簧 SPRING OF SLIDE PLATE |
1 |
|
|
37 |
PF555063803 |
推板螺钉 SCREW |
2 |
|
|
38 |
PF5550161 |
面板螺钉 SCREW 3/16-28 L=12 |
3 |
|
|
39 |
PF5550111 |
面板调节螺孔塞 RUBBER PLUG |
2 |
|
|
40 |
BZ3188 |
面板装饰牌 PLATE |
1 |
|
|
41 |
PFQ5141 |
绕线夹线器组件 BOBBIN THREAD TENSION ASM |
1 |
|
|
42 |
PF90000157 |
绕线器 BOBBIN WINDER ASM |
1 |
|
|
42-1 |
PF900001511 |
绕线器油封 OIL SEAL |
1 |
|
|
43 |
BZ3141 |
安全指示牌 SAFETY-INDICATING PLATE |
1 |
|
|
44 |
PFQ3T0144A |
电机罩组件 PILLEY COVER ASM |
1 |
|
|
45 |
PFS5T0149 |
电机罩组件固定螺钉（短） SCREW（ SHORT） |
3 |
|
|
47 |
PFQ4T0147 |
操作面板组件 OPERATION PANEL |
1 |
|
|
48 |
PFQ50148 |
操作面板组件固定螺钉 SCREW |
1 |
|
|
49 |
PFQ5149 |
支架固定螺钉 SCREW M4 L=5.5 |
2 |
|
|
50 |
PFQ5150 |
支架 STAND |
1 |
|
|
51 |
PFQ5151 |
操作面板顶紧螺钉 SCREW M5 L=25 |
1 |
|
|
52 |
PF98000187 |
调节孔孔塞 RUBBER PLUG |
1 |
|
|
53 |
PFQ5129 |
左线钩 LEFT ARM THREAD GUIDE |
1 |
|
|
54 |
PF9520MXDK02101 |
螺母 NUT 11/64-40 |
1 |
