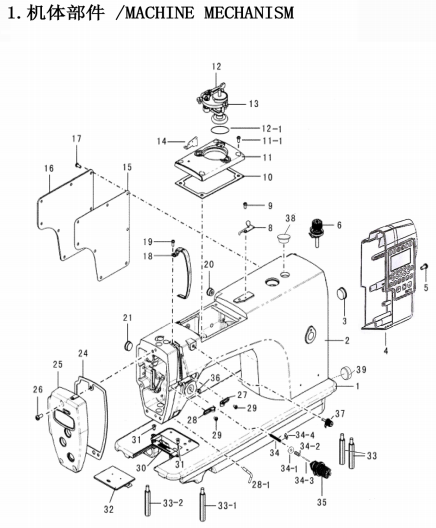

01 |
034203016 |
底板 Bed |
1 |
|
|
02 |
033201014 |
机头 Arm |
1 |
|
|
03 |
PF5550114 |
橡皮塞Φ19Rubber,phug(Φ19) |
1 |
|
|
04 |
12010012 |
电机罩Motor cover |
1 |
|
|
05 |
SCJ2005 |
螺钉M4*25 Screw M4*25 |
4 |
|
|
06 |
PF90000151 |
卷线器夹线组件Crimping device clamp assembly |
1 |
|
|
08 |
PF90000132 |
切刀 CUTTER |
1 |
|
|
09 |
PF68425K19 |
螺钉1/8*40-4 Screw 1/8*40-4 |
2 |
|
|
10 |
PF9520MXDK031 |
上盖垫片 The upper cover gasket |
1 |
|
|
11 |
PF9520MXDK033 |
上盖 loam cake |
1 |
|
|
11-1 |
PF6150812 |
螺钉 Screw |
4 |
|
|
12 |
PF90000157 |
卷线器组件Reel Components |
1 |
|
|
12-1 |
PF900001511 |
绕线器垫片油封Oil seal |
1 |
|
|
13 |
PF90000131 |
卷线器固定螺钉Screw |
3 |
|
|
14 |
PF0302113 |
三眼线勾 Over pole |
1 |
|
|
15 |
PF9800TD402 |
后盖板垫片Gasket for arm side cover |
1 |
|
|
16 |
PF9800TD401 |
后盖板Arm side cover |
1 |
|
|
17 |
PF555016 |
螺钉 Screw |
8 |
|
|
18 |
PF5550229 |
挑线杆防护罩 Thread take-up guard |
1 |
|
|
19 |
PF5550230 |
螺钉 3/16*28-6 Screw 3/16*28-6 |
1 |
|
|
20 |
PF7810167 |
孔塞 Rubber plug |
1 |
|
|
21 |
PF9820Z85 |
孔塞 Rubber plug |
3 |
|
|
24 |
PF9520MXDK032 |
面板垫片 Gasket for face plate |
1 |
|
|
25 |
PF9520MXDK034 |
面板 Faceplate |
1 |
|
|
26 |
PF5550161 |
螺钉3/16*28-12 Screw 3/16*28-12 |
3 |
|
|
27 |
PF5550316 |
机壳线钩 Chassis line kook |
1 |
|
|
28 |
PF5550318 |
左线钩Left arm thread guide |
1 |
|
|
28-1 |
PF9520MXDK021 |
大线钩Large arm thread guide |
1 |
|
|
29 |
PF5550317 |
线钩螺钉11/64*40-6 Screw 11/64*40-6 |
2 |
|
|
30 |
PF852013501 |
针板 Slide plate |
1 |
|
|
31 |
PF9520MXDK054 |
针板螺钉 Needle plate screw |
2 |
|
|
32 |
PF5550638 |
推板组件 Slide plate spring |
1 |
|
|
33 |
PF555013 |
机壳支撑杆Rod case |
2 |
|
|
33-1 |
PF90000120 |
机壳支撑杆(长)Rod case（L） |
1 |
|
|
33-2 |
PF90000121 |
机壳支撑杆（中） Rod case(M) |
1 |
|
|
34 |
PF90000329 |
松线辅钉 Loose wire nails |
1 |
|
|
34-1 |
PF5550333 |
松线辅钉垫片 TENSION RELEASE SUPPORTING PIN |
1 |
|
|
34-2 |
PF5550334 |
松线辅钉弹簧 TENSION RELEASE PIN SPRING |
1 |
|
|
34-3 |
PF6150131 |
松线钉 Thread RELEASE PIN |
1 |
|
|
34-4 |
SCJ1004 |
开口挡圈 SNAP RING |
1 |
|
|
35 |
PF98000318 |
夹线器组件 Clamp components |
1 |
|
|
36 |
PF5550330 |
螺钉 15/64*28-7 Screw 15/64*28-7 |
1 |
|
|
37 |
PF98000312 |
小夹线器组件 Small clip cord assembly |
1 |
|
|
38 |
PF98000187 |
调节孔孔塞 RUBBER PLUG |
1 |
|
|
39 |
PF5550115 |
下轴盲孔塞 RUBBER PLUG |
1 |
